Products
Deflashers
Engineered for efficiency within integrated manufacturing cells, Trinks Deflashing Systems support the molding and finishing of similar parts or part families under the strict quality and timing demands of just-in-time production. Their small-footprint design allows each unit to operate close to the molding press, and systems can be configured for automatic or semi-automatic operation to reduce hand finishing and increase overall throughput.
Custom Engineered
Full-System Integration
Proven Durability
Global Support
Explore Our Deflashers

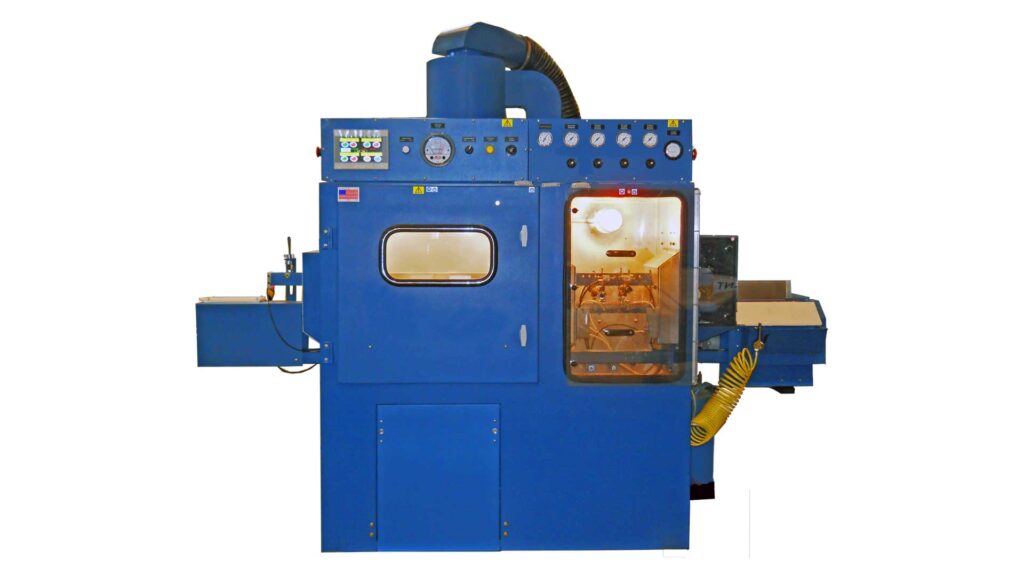

Low Pro Inline
The Low-Pro Deflashing System is ideally suited for working in tandem with your molding process and can accommodate manual or automated feeding. With a simple process, the system conveyor moves parts through two steps, blasting and cleaning. The chambered design isolates each process by eliminating cross contamination.
- Up to sixteen (16) blast guns. Nozzles are mounted on universal swing arms for easy adjustment and greater effectiveness
- Durable ceramic blast nozzles
- One piece design unit w/blast chamber, cyclone separator, media feed system & all electrical
pneumatic controls - Double belt conveyor system
- PLC with operator interface and push buttons
- Internal baffling
- Explosion-proof light
- Anti-static humidifier
- Full opening/removable access door
- Flash trap screen floor w/vibrator
- Mounted exit cleaning/blow-off station
- NRTL Certifications: UL, CUL, CSA, or CE Mark
- Additional blast units
- Gun clog sensor
- Low level media sensor
- Low pressure sensor alarm

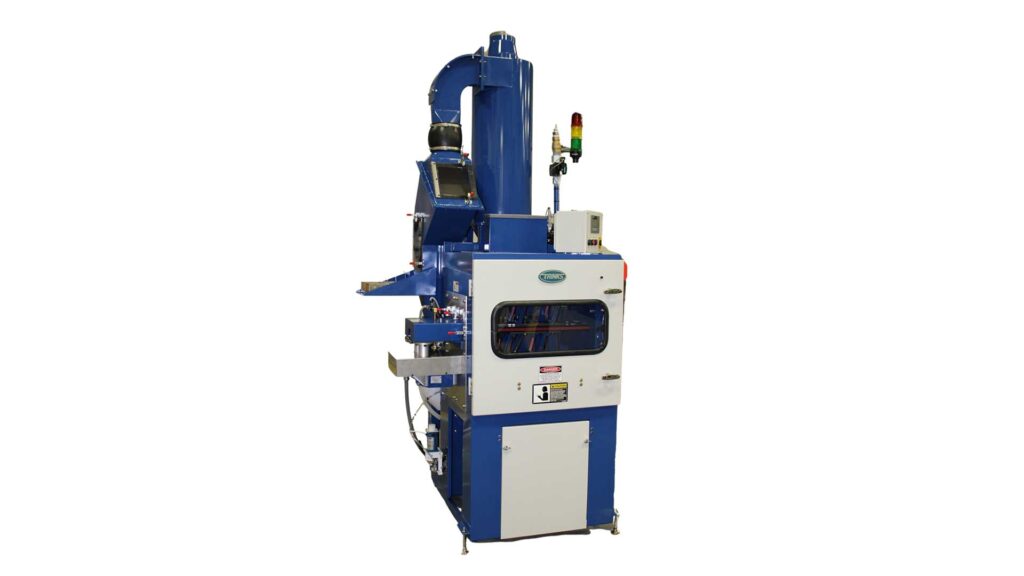

Rollaveyor
The Rollaveyor Deflashing system provides automated, high efficiency deflashing at your molding press for small or large parts, in batch, or continuous operation. Small parts may be deflashed individually or in twin blast chambers. Dividers may be added to create up to eight compartments with separate tumbling paths.
- Up to sixteen (8) blast guns mounted on an oscillating gun bracket for greater effectiveness
- Freestanding dust collector with automatic filter shaker and quick release dust pail
- Automatic media refill hopper for steady flow
- Size-interchangeable durable nozzles
- Explosion-proof lights
- Air intake humidifer to reduce dust and static
- Anti-static blow off system to assist removal of dust
- Full opening access door
- NRTL Certifications: UL, CUL, CSA, or CE Mark
- Additional blast units
- Gun clog sensor
- Low level media sensor
- Low pressure sensor alarm

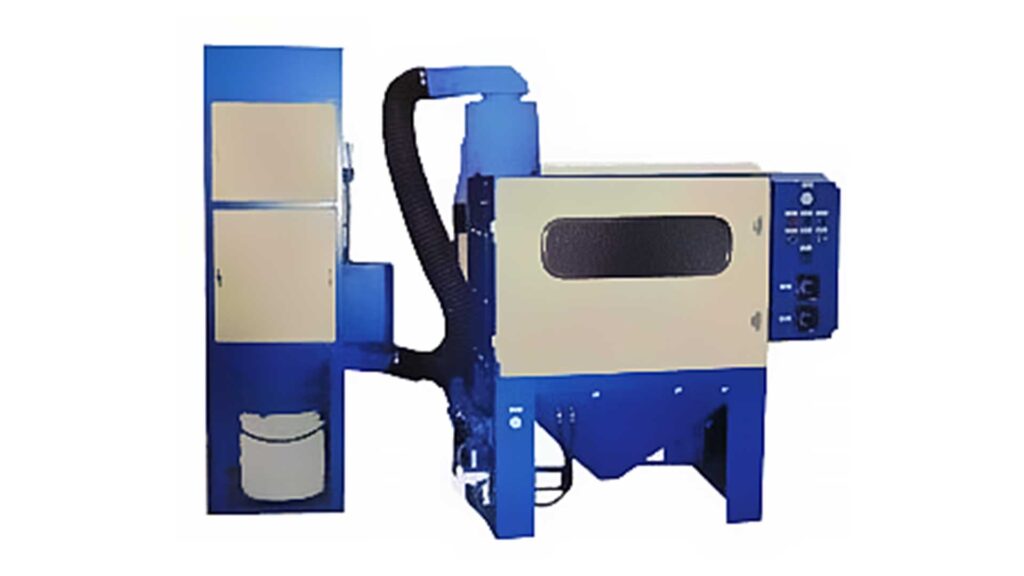

Tumble Blast
The semi-automatic tumble blast deflashers are specifically engineered for tumble blast cleaning large volumes of small parts. Each unit features a compact modular system that includes a cyclone media separator, dust collector and a coated basket containing (2) guns to pneumatically blast parts with media for positive deflashing and less staining.
- Up to sixteen (2) blast guns mounted on an oscillating gun bracket for greater effectiveness
- Freestanding dust collector with automatic filter shaker and quick release dust pail
- Automatic media refill hopper for steady flow
- Size-interchangeable durable nozzles
- Explosion-proof lights
- Air intake humidifer to reduce dust and static
- Anti-static blow off system to assist removal of dust
- Full opening access door
- NRTL Certifications: UL, CUL, CSA, or CE Mark
- Additional blast units
- Gun clog sensor
- Low level media sensor
- Low pressure sensor alarm
